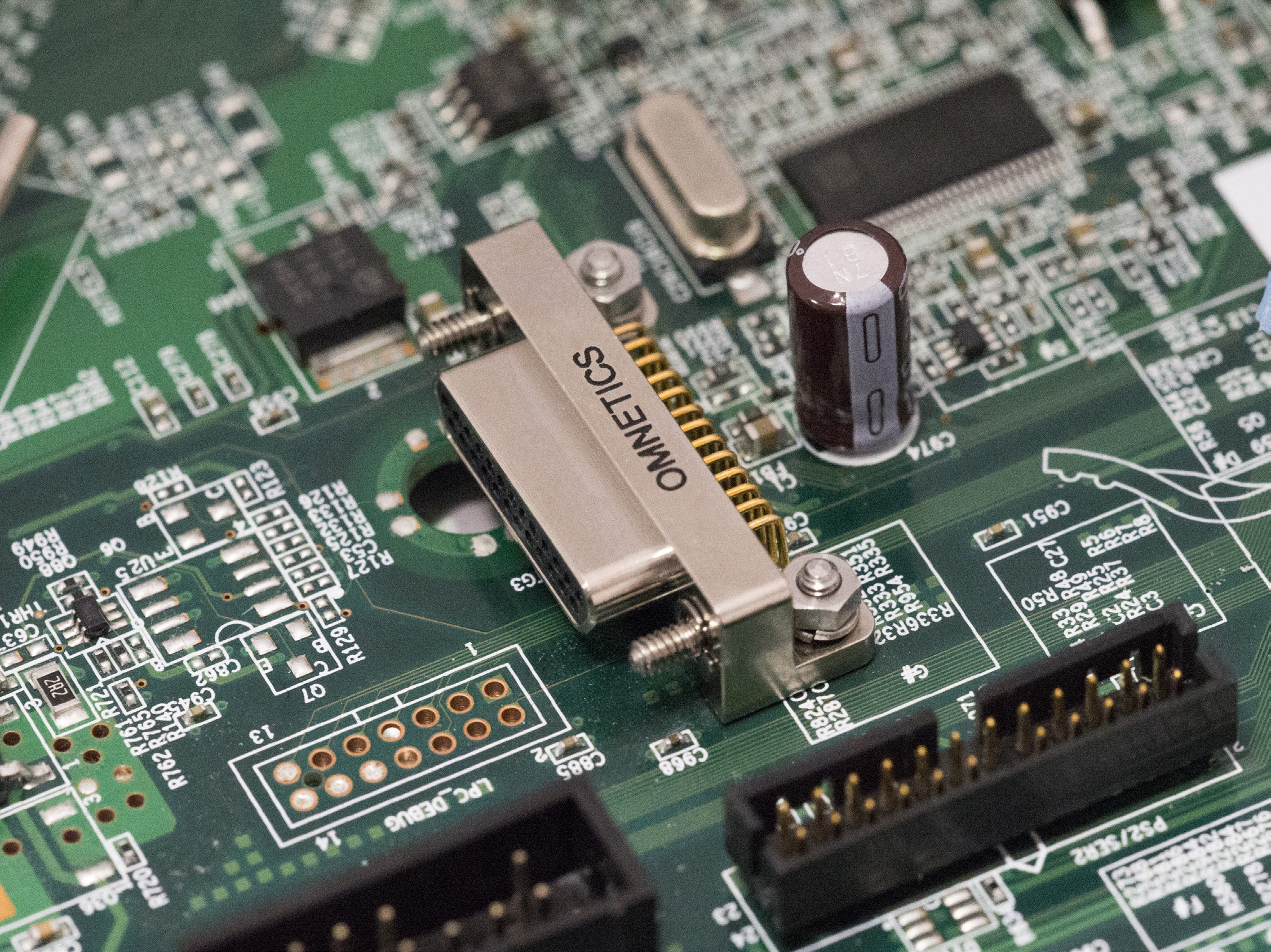

MIL-DTL-83513 MICRO D connectors by Omnetics
- 9 to 100 contacts. Up to 3 Amp for signal contact and 7.5 Amp for power contact.
- Wired connectors, straight or right angle, discrete wires or cable, 24 AWG to 30 AWG.
- Solder cups
- PCB options: thru-hole: straight, horizontal, splayed, dense. SMT: straight, horizontal, edge mount.
- Low profile options
- Flex tail
- Optional float mount, latch, integrated backshell
- Custom designs to customer specs
- Hybrid connectors: signal-power, signal-coax, all power, all coax
